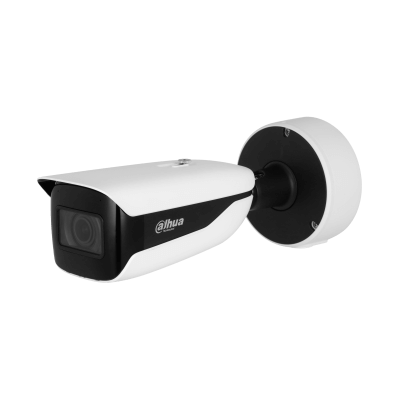

Dahua IP Camera 8MP IPC-HFW5842H-Z4HE

Introducing the 8MP IR Vari-focal Bullet WizMind Network Camera, designed for the 5842-Z-S3 series.

  • 8MP CMOS sensor ensures high-definition imaging with low luminance.
  • Outputs max. 8MP (3840×2160) @25/30fps for detailed footage.
  • Built-in IR LED provides illumination up to 120m for clear night vision.
  • Supports ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265 for efficient coding.
  • Features rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking for versatile monitoring.
  • Advanced deep learning algorithm enables video analytics including metadata, sound detection, IVS, face detection, object detection, and people counting.
  • Multiple alarm inputs and outputs, audio input/output, RS-485, analog output, power output.
  • Supports max. 512GB Micro SD card storage and features built-in dual Mic for audio recording.
  • Power options: 24VAC/12VDC/PoE, with ePoE compatibility.
  • IP67 and IK10 rated for durability, with optional anti-corrosion model.
  • Enhanced motion detection with SMD 3.0 technology and heater for adverse weather conditions.

WhatsApp
Categories: , Tag:

Cutting-Edge Surveillance Camera for Unrivaled Security

Presenting our latest innovation in surveillance technology, this state-of-the-art camera is engineered to redefine security standards and provide unparalleled protection for your property.

Advanced Imaging Capabilities

Featuring a high-performance 1/1.8″ CMOS image sensor, this camera delivers stunning 4K resolution video, ensuring crystal-clear footage for accurate surveillance. With a maximum resolution of 3840 (H) × 2160 (V), every detail is captured with precision.

Enhanced Low-Light Performance

With an incredibly low minimum illumination of 0.0008 [email protected] (Color, 30 IRE) and 0.0004 [email protected] (B/W, 30 IRE), coupled with powerful IR illuminators that extend up to 120 meters (393.70 ft), this camera excels in low-light conditions, ensuring round-the-clock surveillance.

Intelligent Detection and Analysis

Equipped with advanced intelligence features including IVS (Perimeter Protection), Smart Object Detection, and SMD 3.0, this camera offers precise detection and analysis of potential threats, enabling proactive security measures.

Motorized Vari-focal Lens

The motorized vari-focal lens allows for flexible adjustment of the focal length from 8 mm to 32 mm, providing versatile coverage options. With a maximum aperture of F1.6 and P-Iris control, the lens ensures optimal image quality in various lighting conditions.

Comprehensive Video Management

Supporting multiple compression formats including H.265, H.264, and MJPEG, this camera offers flexible video streaming options with up to four streams, catering to diverse surveillance requirements.

Robust Construction for Any Environment

Built to withstand the harshest conditions, this camera features an IP67 weatherproof rating and IK10 vandal-resistant housing, ensuring reliable operation in both indoor and outdoor environments.

Advanced Cyber Security Features

Protect your surveillance system from unauthorized access and cyber threats with advanced encryption techniques, account lockout, IP/MAC filtering, and comprehensive cyber security measures.

Elevate Your Security Strategy

Experience the ultimate in surveillance technology with our advanced camera. Designed to meet the most demanding security requirements, it provides unparalleled performance and reliability for all your surveillance needs. Trust in our commitment to innovation and security for enhanced peace of mind.

Specifications

Camera

Image Sensor

1/1.8″ CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0008 [email protected] (Color, 30 IRE)
0.0004 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 120 m (393.70 ft) (IR)

Illuminator On/Off Control

Auto; Zoomprio; Manual

Illuminator Number

4 (IR LED)

Angle Adjustment

Pan: 0-360°
Tilt: 0-90°
Rotation: 0-360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

Module

Focal Length

8 mm–32 mm

Max. Aperture

F1.6

Field of View

H: 42°–15°; V: 23°–9°; D: 48°–17°

Iris Control

Auto

Iris Control Type

P-Iris

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

213.6 m (700.79 ft)

85.4 m

(280.18 ft)

42.7 m

(140.09 ft)

21.4 m

(70.21 ft)

T

572.8 m (1879.27 ft)

229.1 m

(751.64 ft)

114.6 m

(375.98 ft)

57.3 m

(187.99 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Yes

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3840 × 2160@ (1–25/30 fps)
Sub stream: D1@ (1–25/30 fps)
Third stream: 1080p@ (1–25/30 fps)
Fourth stream: 720p@ (1–10 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1535/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps
H.265: 12 kbps–13568 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688×1520 )resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional)

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (terminal)

Audio Output

1 channel (terminal)

Alarm Input

3 channels in: wet contact, 5mA 3V–5V DC

Alarm Output

2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC

Analog Output

1 channel (CVBS output: BNC)

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC/24 VAC/PoE (802.3at)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 4.6 W (12 VDC); 5.8 W (24 VAC); 6.6 W (PoE)
Max. (Focus+WDR+ Intelligence on+IR on): 13.4 W (12 VDC); 15.7 W (24 VAC); 16.7 W (PoE)
Heating: 3 W (12 VDC); 3.6 W (24 VAC); 3.8 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

10%–95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal + plastic

Product Dimensions

345.6 mm × 134.2 mm × 135.1 mm (13.61″ × 5.28″ × 5.32″) (L × W × H)

Net Weight

1.6 kg (3.53 lb)

Gross Weight

2.4 kg (5.29 lb)
